The Bronco is a great platform to plan your next adventure around which is why we thought it might be necessary to offer enthusiasts a superior lighting solution. This lighting kit includes a pair of Squadron Pro LED auxiliary lights in the spot, along with a set of wide cornering, and driving/combo lenses in the case you would like to change the pattern to a more near-field orientation. The accessories included in this kit are an upfitter style harness and hardware. The installation process of this kit is extremely simple and does not require any cutting or drilling.
Baja Designs Features:
- uService® – Replaceable Lenses And Optics
- ClearView® – All The Light, Right Where You Need It.
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications(Per Light):
- Lumens: 4,600 Utilizing 2 types of Cree LEDs
- Wattage/Amps: 40W / 2.90A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)

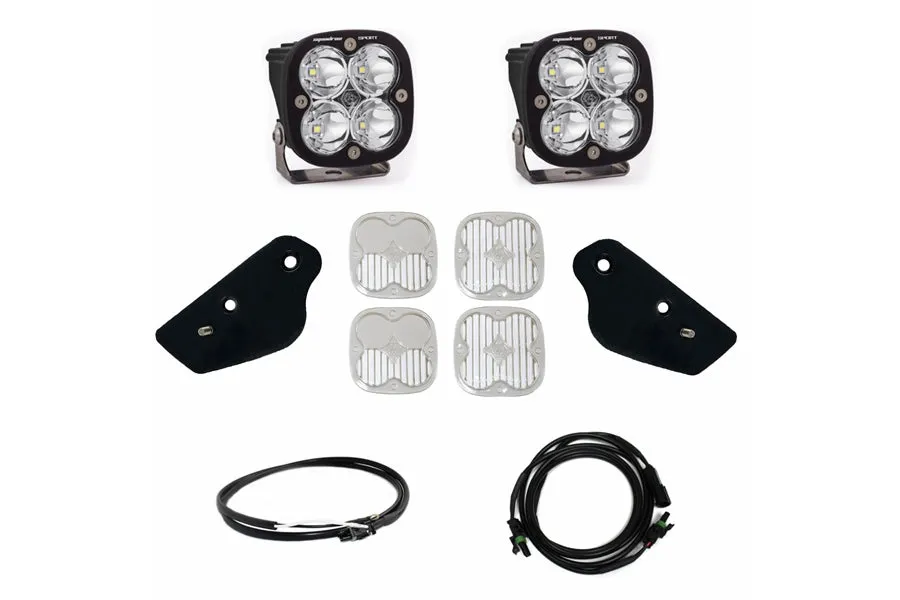

Includes:
- Squadron Pro, Pair Spot LED
- x2 Squadron Wide Cornering, Clear Lenses
- x2 Squadron Driving/Combo, Clear Lenses
- Mounting Hardware
- Upfitter Harness

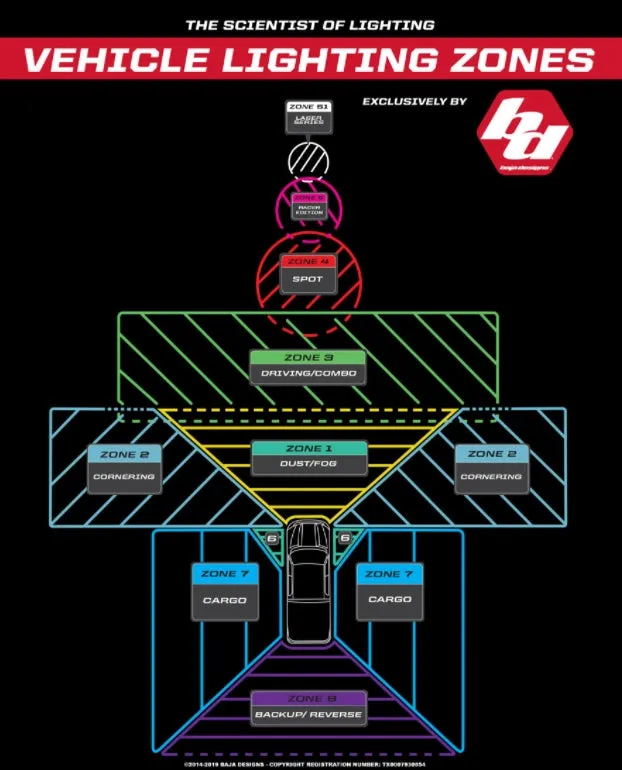

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
NOTE: Will not fit Bronco Sport
Dimensions:
- Per Light: 3.07" x 2.77" x 3.07"
- Weight: 12 ounces
