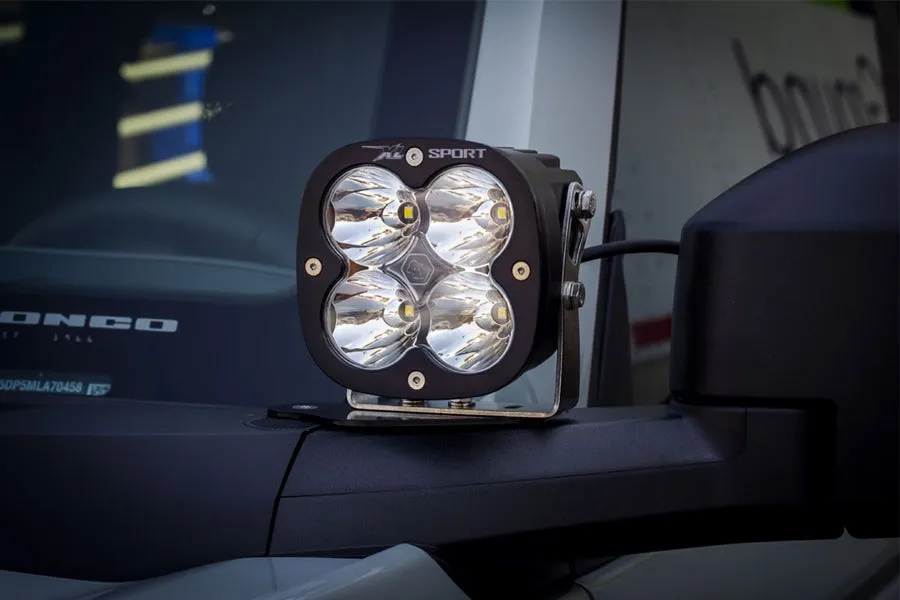

The Bronco is a great platform to plan your next adventure around which is why we thought it might be necessary to offer enthusiasts a superior lighting solution. This lighting kit includes a pair of Squadron Sport LED auxiliary lights in spot, along with a set of wide cornering, and driving/combo lenses in the case you would like to change the pattern to a more near-field orientation. The accessories included in this kit are a upfitter style harness and hardware. The installation process of this kit is extremely simple and does not require any cutting or drilling.

Baja Designs Features:

• uService® – Replaceable Lenses And Optics

• ClearView® – All The Light, Right Where You Need It.

• MoistureBlock™ – Waterproof, Rain Proof, Submersible

• CopperDrive® – Only LED Driven At 100%

• 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications(Per Light):

• Lumens: 3,150 Utilizing 4 LEDs

• Wattage/Amps: 26W / 2A LED

• Life Expectancy: 49,930 Hours

• Front Lens: Hard Coated Polycarbonate

• Housing: Powder Coated Cast Aluminum

• Bezel: Billet Machined Aluminum

• Hardware & Bracket Material: Stainless Steel

• Exceeds MIL-STD810G (Mil-Spec Testing)

• Built-In Overvoltage Protection

• IP69K (Waterproof, Submersible to 9ft)

• IK10 Compliant (Mechanical Impact Testing)

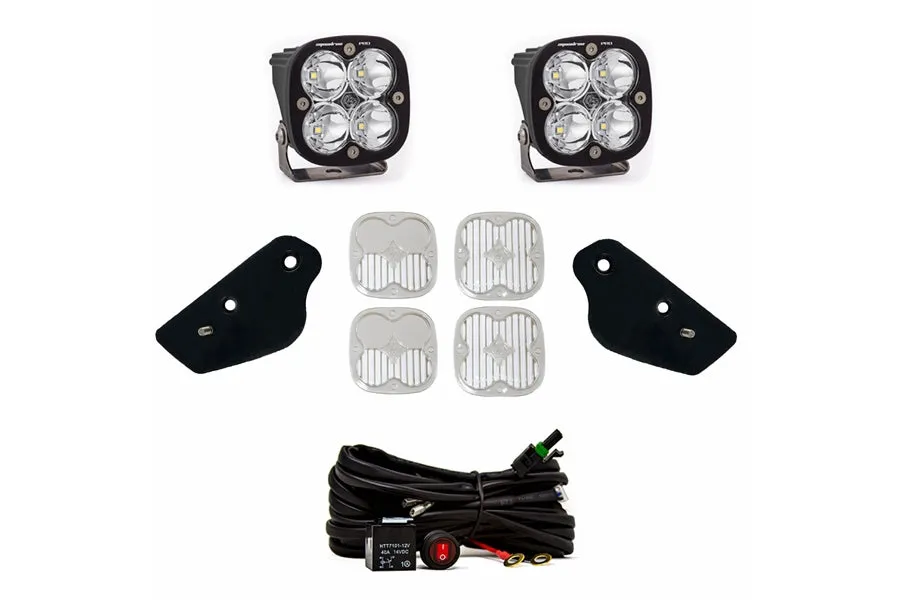

Includes:

• Squadron Sport, Pair Spot LED

• x2 Squadron Wide Cornering, Clear Lenses

• x2 Squadron Driving/Combo, Clear Lenses

• Mounting Hardware

• Upfitter Harness

Patterns:

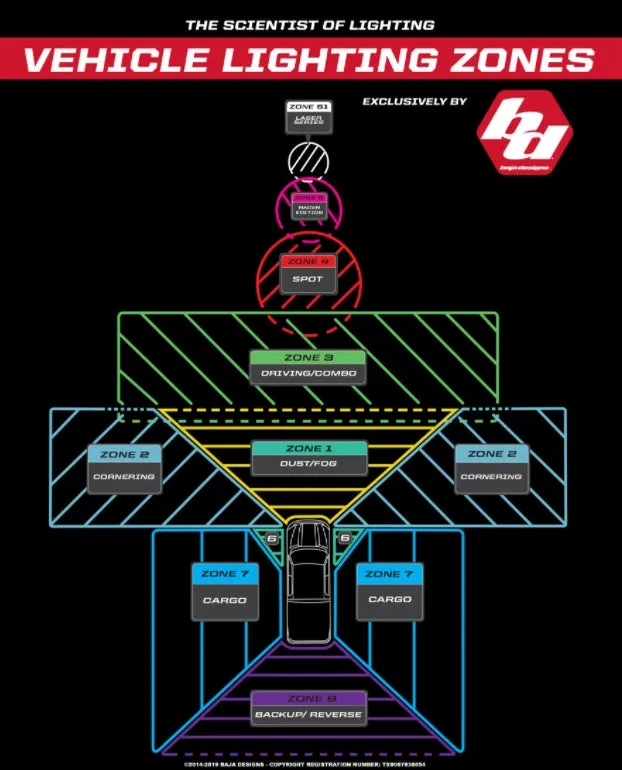

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

NOTE: Will not fit Bronco Sport

Dimensions:

3.07" x 2.77" x 3.07"

Weight: 12 ounces
