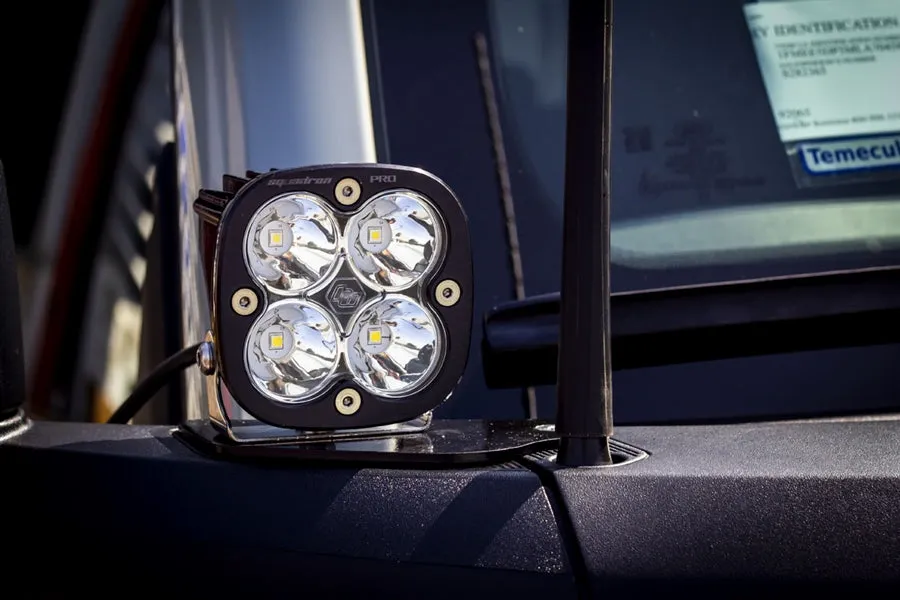

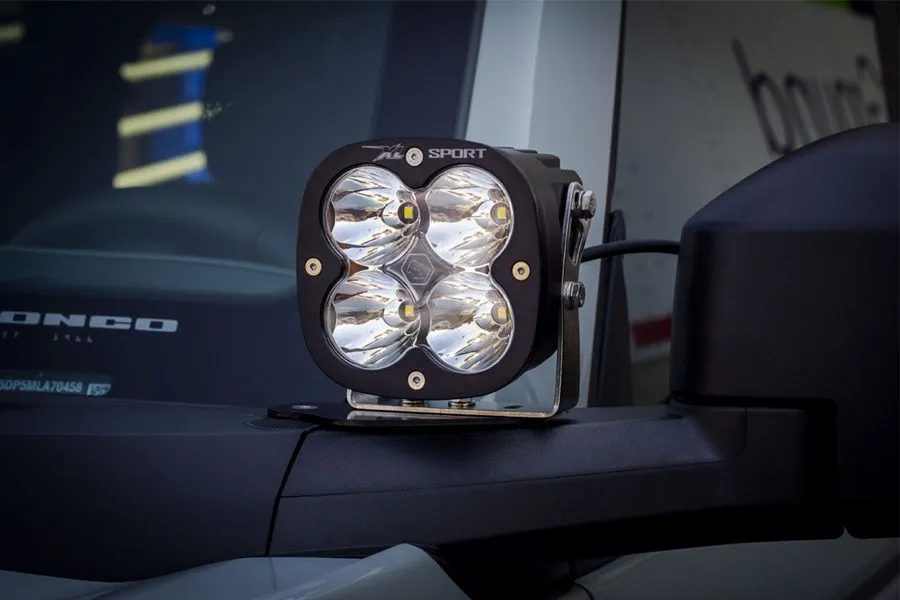

The Bronco is a great platform to plan your next adventure around which is why we thought it might be necessary to offer enthusiasts a superior lighting solution. This lighting kit includes a pair of XL Pro LED auxiliary lights in spot, along with a set of wide cornering, and driving/combo lenses in the case you would like to change the pattern to a more near-field orientation. The accessories included in this kit are a upfitter style harness, and hardware. The installation process of this kit is extremely simple and does not require any cutting or drilling.
Baja Designs Features:
- uService® – Replaceable Lenses And Optics
- ClearView® – All The Light, Right Where You Need It.
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (Per Light):
- Lumens: 4,600 Utilizing 4 Cree XP-L LEDs
- Wattage/Amps: 40W / 2.90A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

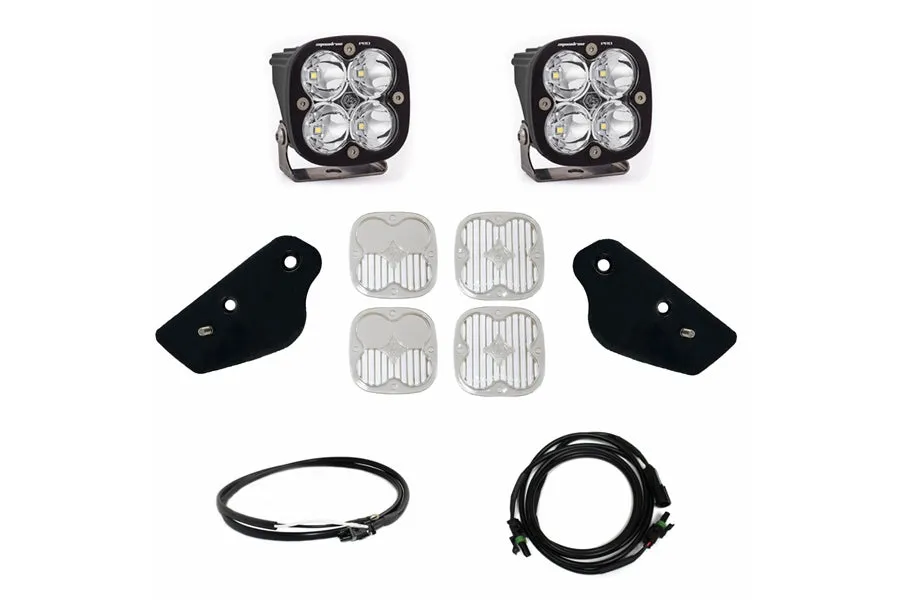

Includes:
- XL Pro, Pair Spot LED
- x2 XL Wide Cornering, Clear Lenses
- x2 XL Driving/Combo, Clear Lenses
- Mounting Hardware
- Upfitter Harness

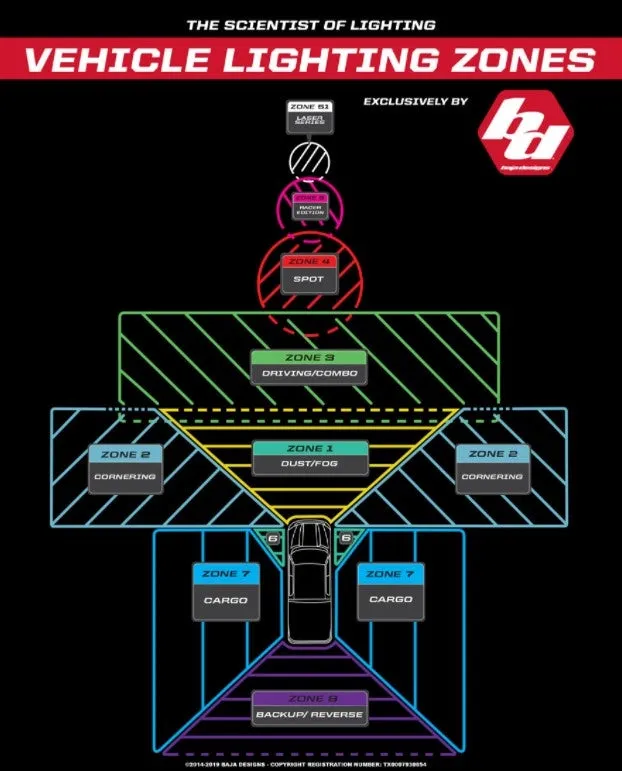

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
NOTE: Will not fit Bronco Sport
Dimensions:
Per Light:
- 4.43" x 3.65" x 4.43"
- Weight: 2.45 lbs
