Name: 2021 Ford Bronco Baja Designs XL Sport Series A-Pillar Light Kit w/ Upfitter
SKU: 596984

The Bronco is a great platform to plan your next adventure around which is why we thought it might be necessary to offer enthusiasts a superior lighting solution. This lighting kit includes a pair of XL Sport LED auxiliary lights in spot, along with a set of wide cornering, and driving/combo lenses in the case you would like to change the pattern to a more near-field orientation. The accessories included in this kit are a upfitter style harness, and hardware. The installation process of this kit is extremely simple and does not require any cutting or drilling.

Baja Designs Features:

uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications (Per Light):

Lumens: 3,150 Utilizing 4 LEDs
Wattage/Amps: 26W / 2A
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Application:

2021 - On Ford Bronco

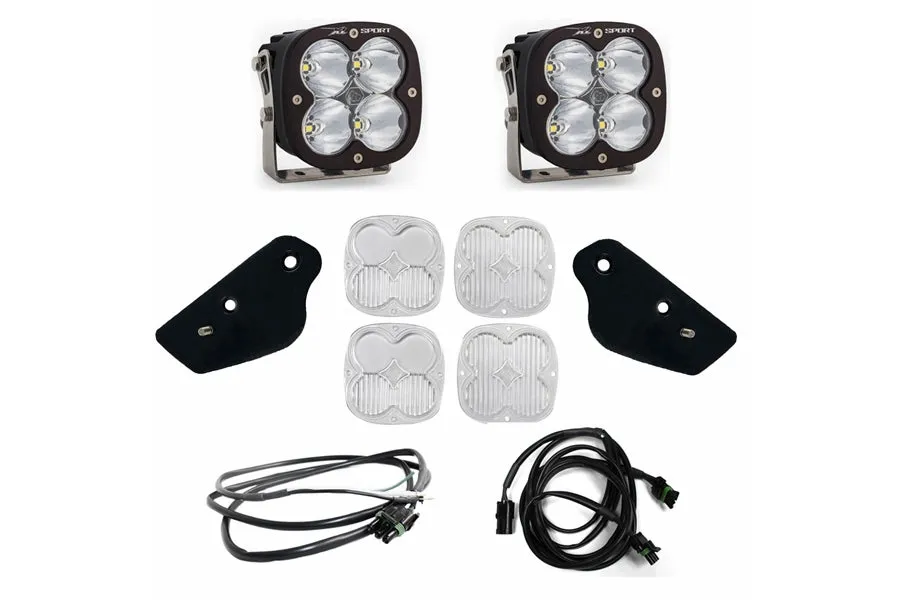

Includes:

XL Sport, Pair Spot LED
x2 XL Wide Cornering, Clear Lenses
x2 XL Driving/Combo, Clear Lenses
Mounting Hardware

Patterns:

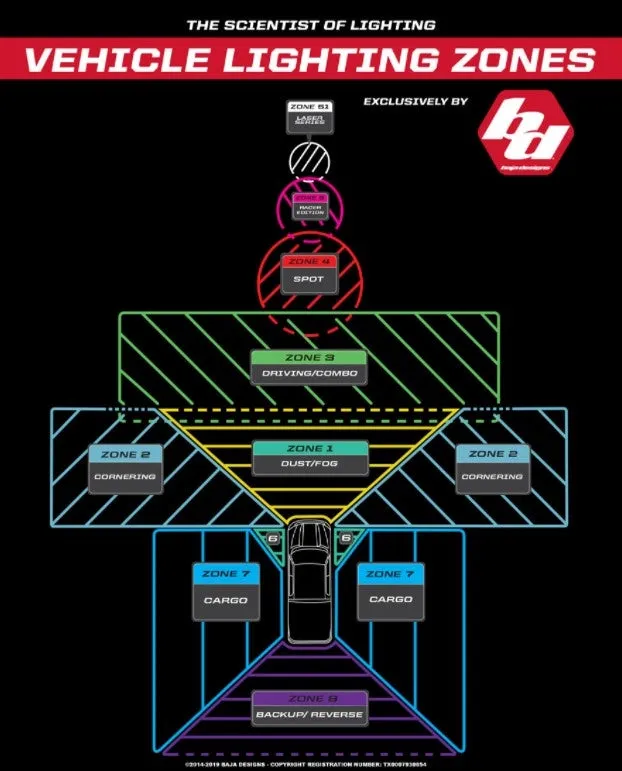

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

NOTE: Will not fit Bronco Sport

Dimensions:

Per Light:

4.43" x 3.65" x 4.43"

Weight: 2.45 lbs
