Name: 2021 Ford Bronco Baja Designs XL80 Series A-Piller Light Kit w/ Upfitter
SKU: 596986

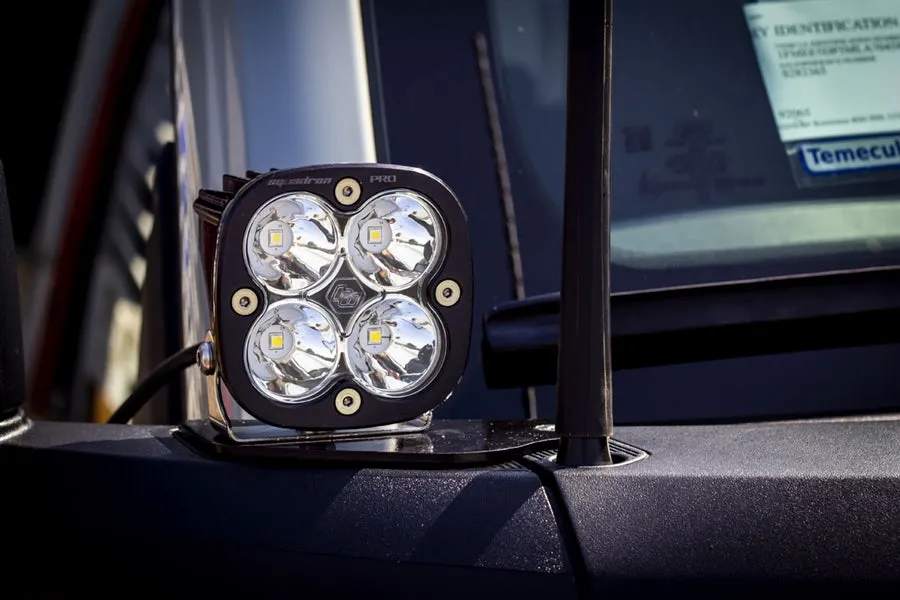

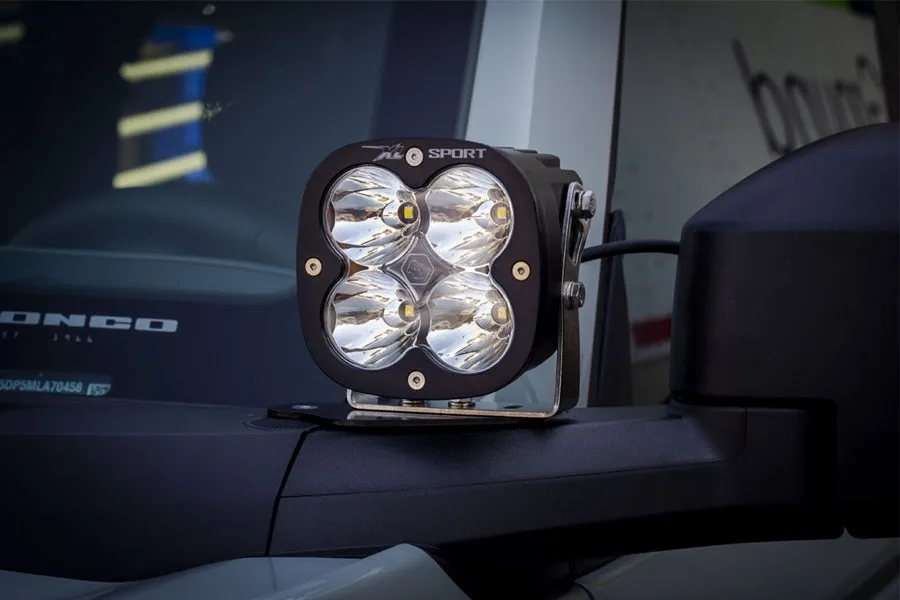

The Bronco is a great platform to plan your next adventure around which is why we thought it might be necessary to offer enthusiasts a superior lighting solution. This lighting kit includes a pair of XL80 LED auxiliary lights in driving/combo, along with a set of wide cornering, and spot lenses in the case you would like to change the pattern to a more near-field orientation. The accessories included in this kit are an upfitter style harness and hardware. The installation process of this kit is extremely simple and does not require any cutting or drilling.

Baja Designs Features:

uService® – Replaceable Lenses and Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications (Per Light):

Lumens: 9,500 Utilizing 4 Cree LEDs
Wattage/Amps: 80W / 5.50A
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

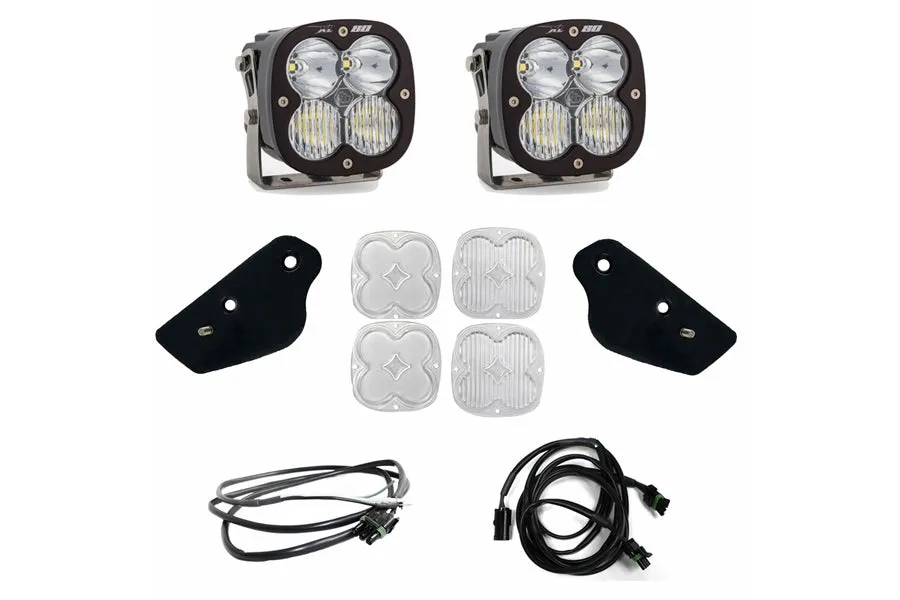

Includes:

XL80, Pair Driving/Combo LED
x2 XL Wide Cornering, Clear Lenses
x2 XL Spot, Clear Lenses
Mounting Hardware
Upfitter Harness

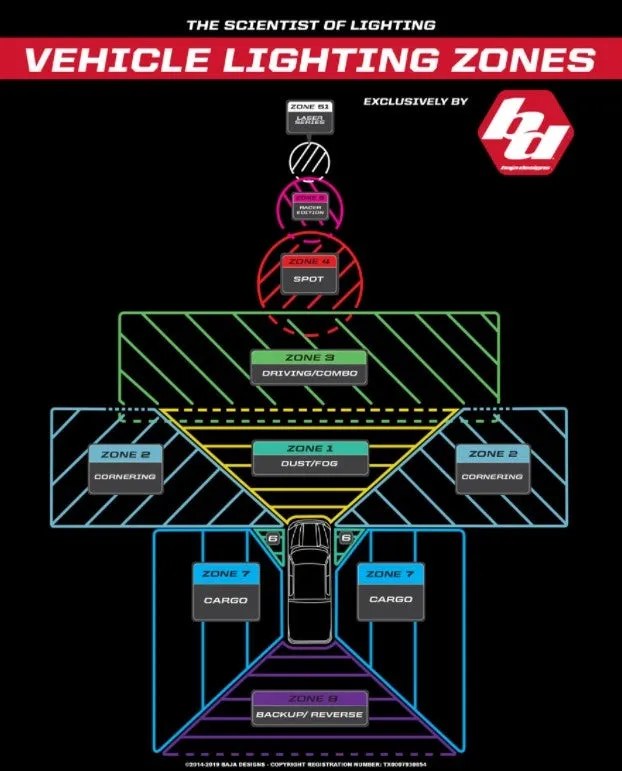

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3) W

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

NOTE: Will not fit Bronco Sport

Dimensions:

Per Light:

4.43" x 3.65" x 4.43"

Weight: 2.45 lbs
